Worm Prototype: A Toy Worm

February 18, 2025

Toy worm is a computer worm, but a small toy version. I built it as my first crack at building a computer worm, and as a follow up to my previous project building malware. The reason I am building malware you ask? Because I believe the best way to defend a computer is to know how to attack one. You can see the toy-worm source code here.

This blog post will be an engineering discussion of the project, its goals, outcomes and future plans for it. This project has a grander vision that I will continue to work on. This version of the worm is the prototype and first iteration in what I hope to be an ever more capable worm over time.

Vision of a Grand Computer Worm

I have a vision for this worm. The vision implements engineering, operations and R&D activities to develop, deploy, and support the worm in compromising target systems, delivering payloads, and adapting in the field while remaining undetected.

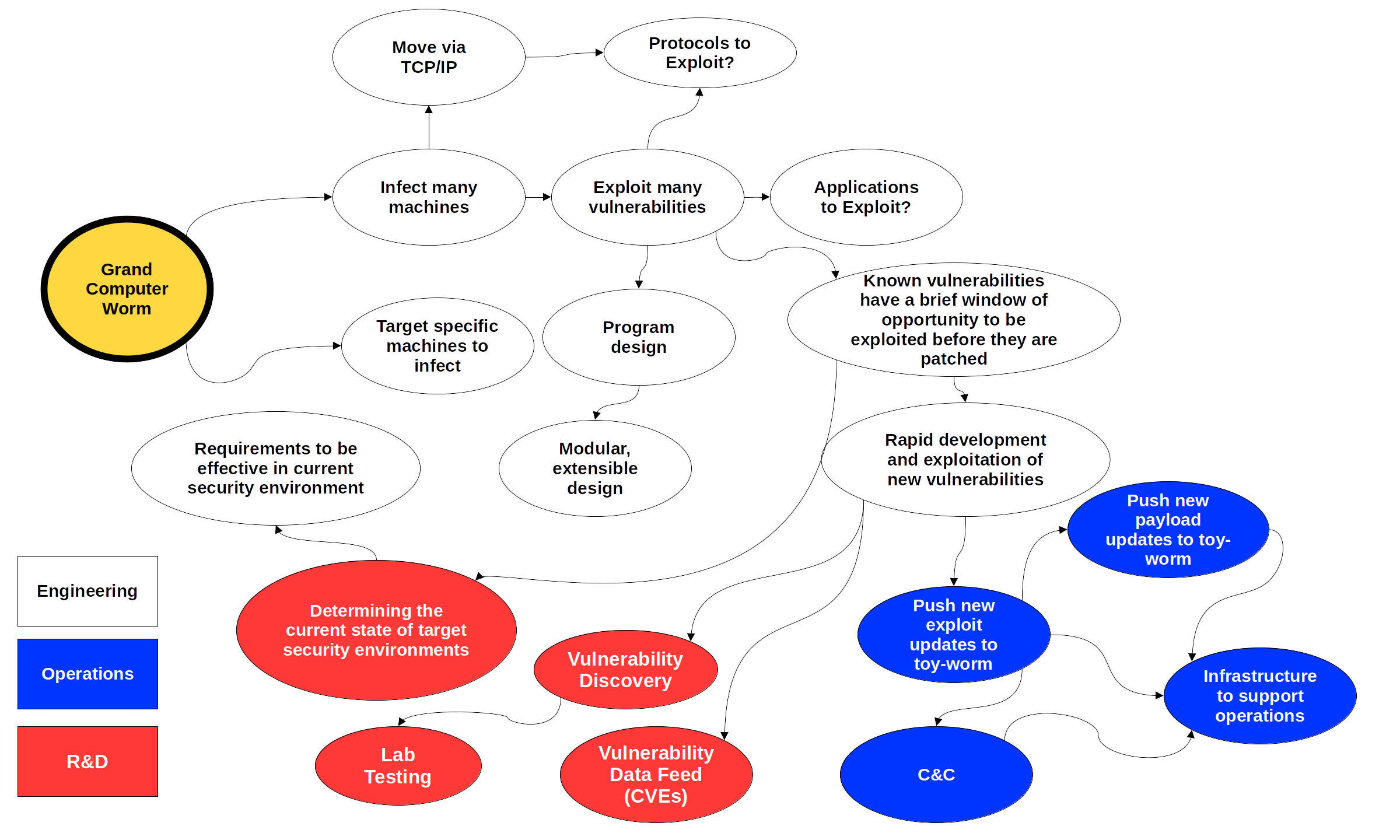

The mind map in Figure 1 below details the vision. The white ovals identify the engineering requirements for an effective worm. As I developed the mind map and kept drilling deeper I started to hit upon what are really operational and R&D requirements more so than engineering. These are the blue and red ovals respectively.

In short the focus of the worm is to infect as many machines as possible. This requires building in a wide variety of exploits. Each exploit has a brief window of opportunity to exploit any known vulnerabilities before they are patched. To support the rapid exploitation of these vulnerabilities requires the rapid development of exploits, which requires the operational ability to push software updates and the infrastructure to support it. Rapid exploitation of vulnerabilities can also be achieved through R&D efforts in finding new vulnerabilities. The red ovals derive from this insight.

Figure 1: Mind Map of the Vision for the Worm

Design Goals and Design Decisions

This is the first iteration of the grand computer worm concept. Therefore it is a prototype, first shot, don't get your expectations up yet type of thing. As such I didn't really design the structure of the program but focused instead on figuring out how to get the fundamental functions of a worm working. However, there were a few high level design goals and decisions at this early stage.

First, I chose Rust to build this worm. C is the natural choice, but I chose Rust because I believe it will be an important language in the cybersecurity space in the future due to it being a memory-safe systems programming language. Therefore I wanted to learn more about programming in Rust. I also considered Go but decided against it as I want to minimize the binary size. C would have produced smaller binaries than Rust, but Rust's binary sizes are reasonable.

Second, I want this worm to be able to target Linux and Windows systems. However, I decided to focus on Linux as that is the operating system I am more familiar with, and to also keep things simple for now.

The Familiar Apache HTTP Server CVE-2021-41773 Exploit

In order to focus less on any given vulnerability and its exploit, I decided to use the same exploit I did in my previous malware project which is CVE-2021-41773. Long story short a path traversal vulnerability in Apache HTTP sever version 2.4.49 allows remote code execution. This is the perfect vulnerability to build a worm around.

How the Worm Works

After some experimentation and development, the worm ended up working as follows:

  1. Gain initial access, in this case via the Apache HTTP server vulnerability.
  2. Check what neighbors on the local network the infected machine has been communicating with by inspecting the ARP cache at /proc/net/arp for IP addresses.
  3. The worm then replicates by reading a copy of itself into memory.
  4. The worm grapples to the next target system by trying the Apache exploit on each of the IP addresses found in the ARP cache via a manually implemented HTTP request over TCP. Implementing the HTTP request manually in TCP eliminated the need for using any external HTTP libraries, significantly reducing the binary size. The binary, 551kb in size, is base64 encoded before sending via an HTTP POST request. Once the worm succeeds in grappling onto another system, the success state is saved in a struct that represents the target and its IP address is not hit again to avoid overwriting the copy of the worm on that machine.
  5. The exploit writes the copy of the worm to the target machine's /tmp directory since all users have rwx to this directory. In particular Apache runs under the daemon user.
  6. As an additional safeguard, the exploit itself (implemented in Bash, see Listing 1) has an if-check to not deliver the worm to the target if a copy of the worm is already on the target machine. This is to prevent different copies of the worm on different machines from hitting the same target and overwriting the worm already deployed there.

The bit of Rust code that implements the exploit in Bash

let part1 = "echo;if [ ! -e /tmp/toy-worm ]; then echo ".as_bytes();
let replicant = replicate();
let part2 = " > /tmp/worm-base64;base64 -d /tmp/worm-base64 > /tmp/toy-worm;chmod a+x /tmp/toy-worm;rm /tmp/worm-base64;/tmp/toy-worm; fi;".as_bytes();
// `grapple` to used to get onto a neighboring machine.
let mut grapple: Vec<u8> = Vec::new();
let replicant_base64 = BASE64_STANDARD.encode(replicant.as_slice());

Building and Testing

During the development of the worm, I used a Docker image containing the vulnerable Apache HTTP server version 2.4.49. I eventually moved to using virtual machines since the Docker image version of Linux does not use the systemd init system and I wanted to have as realistic a test environment as possible (while still being able to develop the project on the go on my laptop). During the first iteration, VMs were not strictly necessary as the worm does not interact with systemd. However, a goal for the next iteration is for the worm to establish persistence on the target machine. This means automatically starting after the machine is rebooted. To have the worm start on boot, even without requiring a user to log in, will require installing a systemd unit.

To test the exploit in a virtual machine required compiling version 2.4.49 of Apache. The steps taken to build Apache on Debian 12 are detailed in the following section. A brief explanation of statically linking a Rust binary is given afterwards in the next section.

Apache HTTP Server Build on Debian 12 Virtual Machine

The right versions of all the dependencies are required or the build will fail. General instructions for building Apache can be found here: https://httpd.apache.org/docs/2.4/install.html

Build Steps

  1. PCRE

    Download version PCRE 8.45 from https://sourceforge.net/projects/pcre/files/. The PCRE homepage: https://www.pcre.org/. Then build PCRE using the commands in Listing 2.

                ./configure --prefix=/usr/sbin/pcre
            make
            make install

    Then install the libpcre2-dev Debian package.

  2. APR and APR-Util

    Download Apache HTTP server version 2.4.49 source from the Apache website https://dlcdn.apache.org/httpd/#archive. Then download APR and APR-Util from http://apr.apache.org/download.cgi and then move both files to /srclib inside the Apache source directory. Rename each file to apr and apr-util respectively (i.e. remove the version numbers).

  3. Apache version 2.4.49

    Install the Debian package libexpat1-dev, copy the pcre.h header file into the /usr/include dir: sudo cp /home/debian/src/pcre-8.45/pcre.h /usr/include/. Copy the PCRE libraries into where make can find them: sudo cp /home/debian/src/pcre-8.45/.libs/* /usr/lib/x86_64-linux-gnu/ Then cd in the Apache source directory and run the commands in Listing 3:

                ./configure --prefix=/usr/sbin/apache2 --with-pcre=/home/debian/src/pcre-8.45/pcre-config --with-expat=/usr/include/
            make
            sudo make install

    Note: for the -with-pcre you will need to locate the pcre-config file by running locate pcre-config. Use the result for the -with-pcre option. Then see the Apache build instructions https://httpd.apache.org/docs/2.4/install.html for the remaining steps. Once complete use sudo /usr/sbin/apache2/bin/apachectl -k start to start Apache.

Statically Linking Rust

To statically link toy-worm the following steps were used.

  1. Ensure musl and musl-tools (Debian packages) are installed. If not:
        sudo apt install musl-tools
        rustup target add x86_64-unknown-linux-musl
  1. Once installed, run cargo to statically link:
        cargo build --release --target=x86_64-unknown-linux-musl
  1. Confirm the output binary is statically linked using either the file or ldd command. The output binary will be located at target/x86_64-unknown-linux-musl/release.

Demo

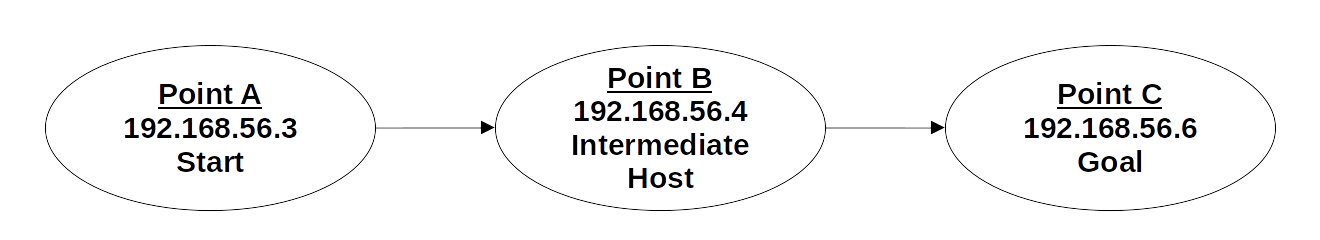

Here is the demo! A simple test of getting from point A to point C via point B using only the information available in each host's ARP cache as shown in Figure 2.

Figure 2: Path to Goal 192.168.56.6

The top panel of the video below shows the host toy-worm starts from. Its IP address is 192.168.56.3, and it has host 192.168.56.4 in its ARP cache. In the bottom left panel, host 192.168.56.4 has 192.168.56.6 in its ARP cache. 192.168.56.6 is in the bottom right panel.

Therefore the only path for toy-worm to reach 192.168.56.6 is via 192.168.56.4. Play the video below to see toy-worm spread from 192.168.56.3 to 192.168.56.6 via 192.168.56.4. Watch for the changes in the directory listings in the bottom two panels once ./toy-worm is executed in the top panel.

The prototype is a success!

Current State

Currently the worm is a bare minimum prototype. All it does at this point is find neighboring hosts on the local network, copy itself, and then deploy a single exploit to gain access to those neighboring hosts. These are the fundamental functions of a computer worm.

The program itself is small and unrefined. Since this is a prototype I only added error handling where strictly necessary for the worm to function, everywhere else I made use of Rust's .unwrap method to avoid handling errors at all, opting to panic instead in the face of the unexpected.

Future State

I have big plans for this project, and when I revisit this project in the future there are many features I would like to add. Here are some of the features I have in mind for future iterations:

  1. Persistence, i.e. autostart on boot by installing a systemd unit. This will require privilege escalation to gain access to a user with rw access to key systemd files and directories.
  2. Obfuscation, i.e. hiding the evidence of the worm's presence. The goal is to avoid YARA and other filesystem scanners from detecting the presence of the binary. My initial attempt at this involved having the worm base64 encode itself after starting but this would interrupt the process. The challenge is to obfuscate the running binary without stopping the process. This is one of the design goals for the second iteration.
  3. Masquerading, i.e. blend in with ordinary looking files. Currently the worm has the incriminating name of "toy-worm". For a production release of the worm a randomly generated but plausible sounding name like "74abed30-enc" will be used. Randomly generating the name each time the worm is copied will counter simple detection based on the filename.
  4. Modular payload delivery. The worm spreading across hosts is only a means to an end, the payload is the end. Payloads could be anything, ransomware, infostealers, disk destroyers etc. The goal here is to be to able to easily swap payloads as needed.
  5. Command and control (C&C), i.e. the worm phones home and awaits special instructions.
  6. Remote software update in the field. Once C&C is established, remotely updating the worms with improvements or new payloads.
  7. A Windows variant.

Lessons Learned

I learned a lot on this first iteration of the worm. In particular I got to dive a little deeper into the operating system and networking than I usually get to with most programs. I queried the proc filesystem, implemented HTTP requests directly using TCP streams, built Apache HTTP server from scratch, learned the basics of what makes a worm tick, took testing beyond Docker and into a network of full-blown virtual machines, identified critical next steps such as persistence and obfuscation, tried my hand at a non-trivial program in Rust, learned a little about the Rust build system, about evading detection via obfuscation and masquerading and about systemd unit files in preparation for the next iteration.

Next Steps

To take the worm to the next level and implement my wishlist of features requires learning more systems programming, Linux operating system details, and privilege escalation. One of the reasons I want to declare victory and wrap this first iteration here is to give myself time and an unstructured environment to explore these concepts without any specific project goals constraining that effort.
